DEN-1B McFarland densitometer (Ref. 96881) with built-in adapter for 18 mm tubes

Densitometers are designed for measurement of cell suspension's turbidity in the range:

DEN-1 0.3–5.0 McFarland units
(100×106 –150×107 cells/ml);
DEN-1B 0.0–6.0 McFarland units
(0–180×107 cells/ml);

Densitometers provide the opportunity to measure solution turbidity in a wider range (up to 15.0 McFarland solution turbidity in a wider range (up to 15.0 McFarland case the standard deviation values increase.

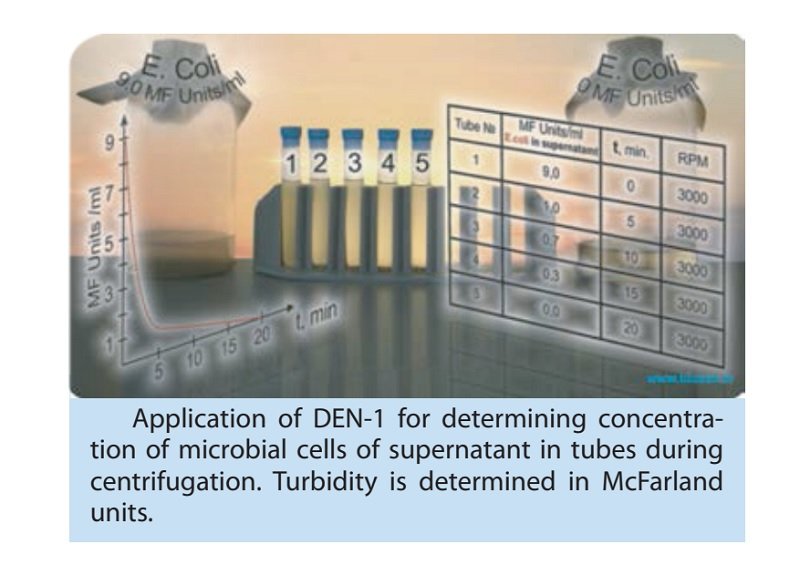

A densitometer is used for measurement of cell concentration (bacterial, yeast cells) during fermentation process, determination of microorganism sensitivity to antibiotics, microorganisms identification using various tests-system for measurement  of absorption at the definite wavelength, as well as for quantitative estimation of concentration of colour solution, absorbing green light.

The operation principle is based on measurement of optical density with digital presentation of results in McFarland units. The unit is calibrated at the factory and keeps calibration without power supply. However, if necessary it is possible to calibrate the unit by 2–6 points in 0.5–5.0 McFarland unit range. Both commercial standards and the cell suspensions prepared in a laboratory can be used for calibration.

Following calibration kits are available on request:
CKG16 for glass tubes with diameter 16 mm;
CKG18 for glass tubes with diameter 18 mm.

Two versions of the product are available:

  1. DEN-1 powered from external energy supply;
  2. DEN-1B powered both from external energy supply andfrombatteries (АА).Besides, DEN-1B operates with higher precision of measurements (up to 0.01 McF).

den 1B



For inquiry please kindly email to : lisa@prolabios.com
