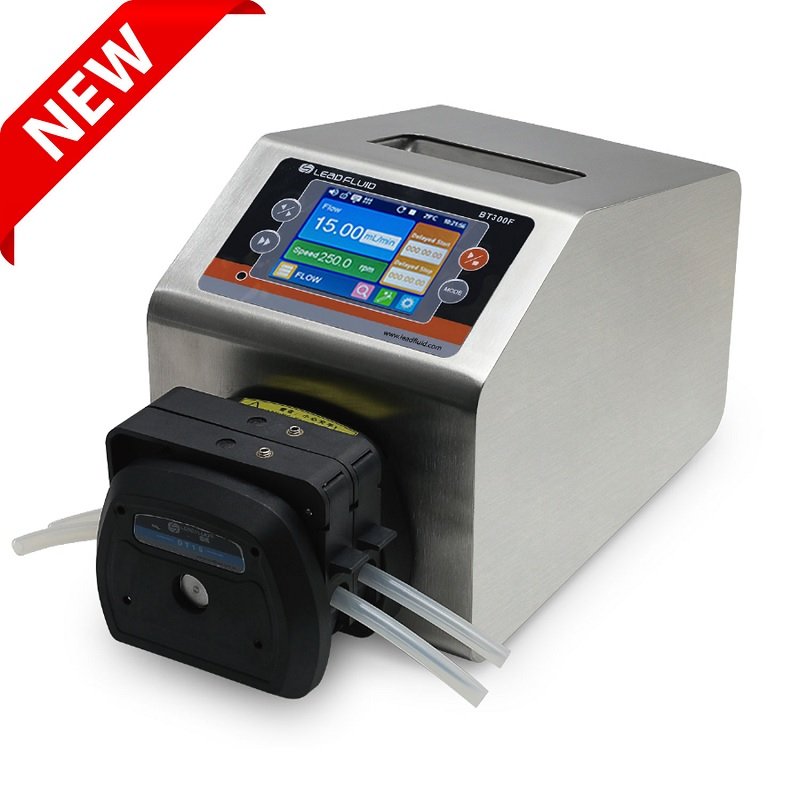

BT300F (NEW) Intelligent Dispensing Peristaltic Pump
BT300F（NEW） Intelligent dispensing peristaltic pump provides flow range from 0.006 to 1690 mL/min with variable pump heads and tubings. BT300F（NEW）adopts the advanced imported microprocessor, and cooperates with the large torque stepper motor. higher transmission accuracy, 3.5-inch high-definition LCD touch screen display and operation, simple and convenient. editable function, preset 30 groups of operation parameters, complete a complex control process. Multiple modes of work are optional , powerful, ideal for liquid timing quantitative transferring and dispensing.
- Flow: 0.006-1690mL/min
- Max: 4 Channels
Functions and Features
- 3.5-inch color LCD display, intuitive image
- Touch screen with key operation, convenient and fast
- LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade
- Four working modes, flow rate, time dispensing, volume dispensing, programming dispensing (cycle)
- Five sets of dispensing parameters for volume and time dispensing pre-storage
- Programming mode supports 30 different quantitative parameter settings for complex control processes
- Reversible direction, start/stop, full speed, suction function, timed start-stop
- Accurate flow control and display, microstep algorithm to ensure the dispensing accuracy of different settings
- Wizard flow calibration function, easy to use
- Unique back suction function to prevent liquid drips
- Support for serial print parameters and data
- Intelligent temperature control function, automatically adjusting the heat according to the environment, so that the device is always in the best state
- External analog adjust speed , external control start-stop ,reversible direction, dispensing, external signal physical isolation
- RS485 communication interface, MODBUS protocol is available, can set up communication parameters, convenient to connect various of control equipments
- Open multiple control parameters , suitable for OEM custom applications
- The circuit board is sprayed with three anti paint technology to achieve the effect of dustproof and moisture-proof
- Super anti-interference feature, wide input voltage range, acceptable for the complex power environment
- Innovative stainless steel housing, easy to clean, effectively prevent the erosion of various organic solvents
Specifications
- Flow range: 0.006-1690 mL/min
- Speed range: 0.1-350 rpm
- Speed resolution: 0.1 rpm
- Speed accuracy: 0.2%
- Dispensing volume: 0.05mL～9999L
- Dispensing time: 1～9999，“0”Infinite cycle
- Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable
- Power supply:AC100～240V，50Hz/60Hz
- Power consumption: <50W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
- Communication interface: MODBUS RS485
- Operating condition: Temperature 0-40°C; Relative humidity <80%
- IP grade: IP31
- Dimensions （L×W×H）260mm×161mm×186mm(10.2 x 6.3 x 7.3 inch)
- Weight: 4.9 kg ( 10.8 lbs)
BT300F Suitable Pump Heads and Tubing, Flow parameters
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT300F (304SS case) |
YZ15 |
1, 2 |
13#14#16#19#25#17# |
0.006～990 |
|
YZ25 |
1, 2 |
15#24# |
0.16～990 |
|
|
DT15-14 |
1 |
19#16#25#17# |
0.07～1300 |
|
|
DT15-24 |
2 |
19#16#25#17# |
0.07～1300 |
|
|
DT15-44 |
4 |
19#16#25# |
0.07～770 |
|
|
YT15 |
1, 2 |
13#14#16#19#25#17#18# |
0.006～1300 |
|
|
YT25 |
1 |
15#24#35#36# |
0.16～1690 |
