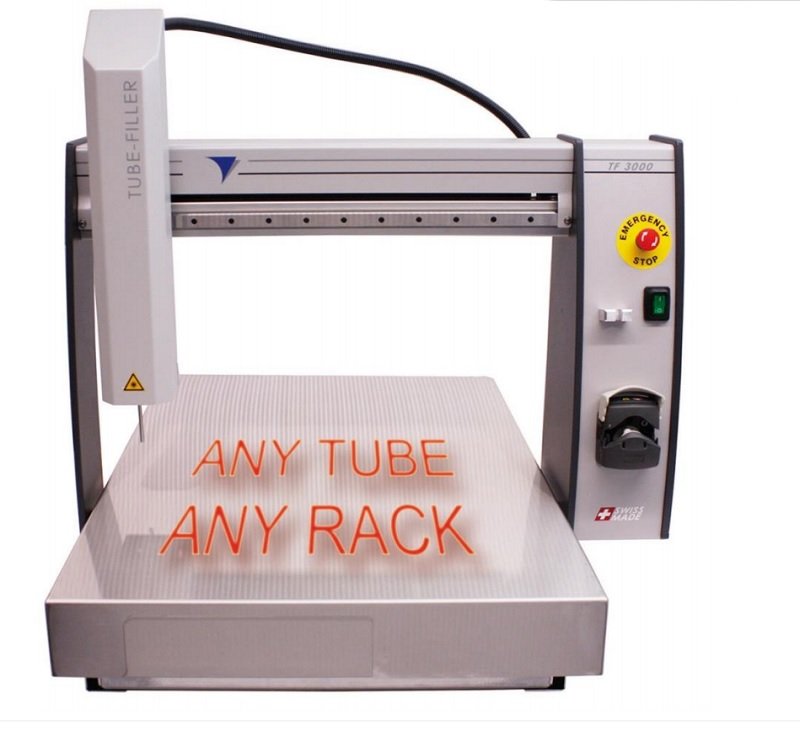

TubeFiller
TubeFiller is designed to reduce repetitive manual filling of any format laboratory racked tubes.
Based on its dedicated function to fill “any tubes in any rack†the design includes a very stable filling arm with 2 side rails for best position recovery, precise XY position axes, an easy manual height adjustment, and an integrated pump to cover the standard microbiology filling range. No need for an additional pump for standard applications.
Especially appreciated by our customers; under the tubes there is stainless steel only! Easy to clean, no rims or gaps and therefore Microbiology friendly and optimal for Food-, Pharma- or Cosmetic- Lab environments.
Suitable for any rack from small 96 well format, typical Microbiology racks holding high glass tubes, up to customized beaker/ bottle holders or any other regular racked lab containments can become filled.

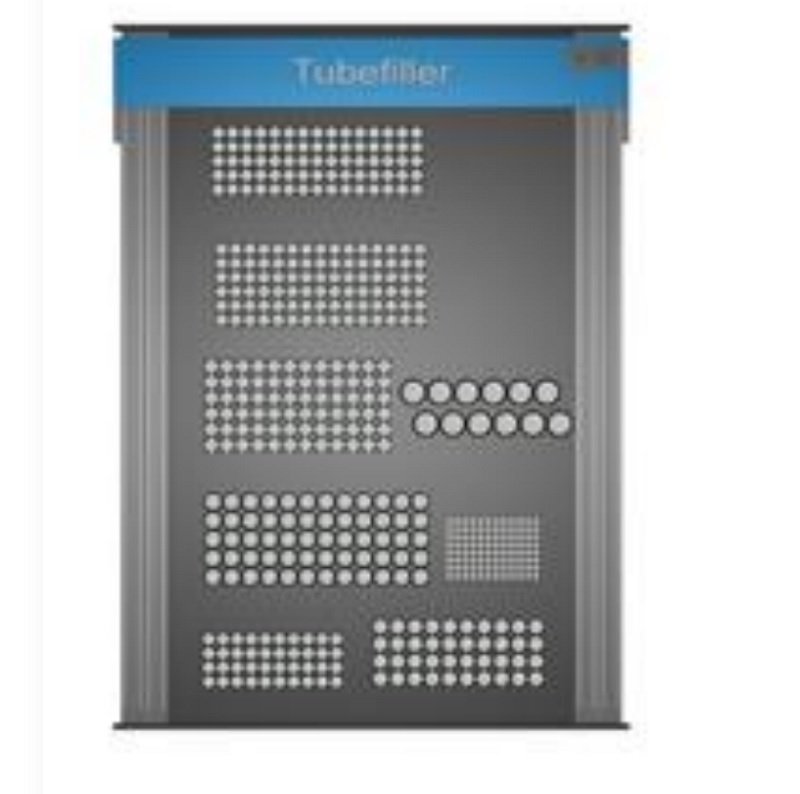

The software allows simplest setup of XY oriented tube racks. The racks are stored in a library. Any new rack setup of the filling platform can be programmed via the rack drag & drop menu. The integrated laser tracking allows definition of exact rack position by checking the first and the last tube in the rack.
The variable rack frame allows the exact repositioning of racks. For repetitive routine applications customer design frames guarantee exact rack positions and process optimized high throughput filling applications.
Designed to its “fill-only-applicationâ€, the TubeFiller is a cost effective filling solution. Made by microbiologists for microbiologists!
Tube filling - rapid and easy
- Allows free positioning of any rack
- Intuitive programmable software
- Integrated pump
- True walk away tube/bottle filling
- 2100 cm2 free usable surface
- Accommodates widest range of any rack from 96-shallow well format to tall tubes and even bottles up to 25cm

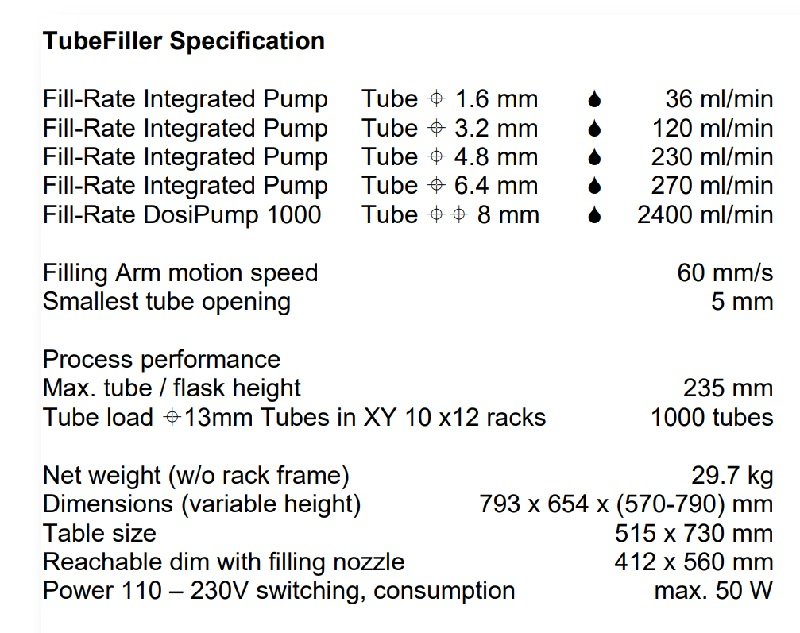

Software & Performance
1000 tubes 5ml/Filling Speed DosiPump DP1000
Software requires WIN 7 or higher, 100 MB disk space, min 4 MB RAM, WXGA Net Framework 4
Catalogue | Descriptions | UoM |
970000 | TubeFiller TF3000 complete* | 1 pc |
970001 | TubeFiller TF3000 base unit | 1 pc |
970101 | TubeFiller PC Software, CD Version | 1 pc |
970222 | Positioning grid, aluminum, 3X+3Y variable rods | 1 pc |
970114 | Silicone tubing set with filling needle 1 | 1 pc |
* Integrated peristaltic pump, Windows-compatible Software on CD-ROM (WIN 7 or higher), Tubing 3*7 mm, filling needle 4mm
For inquiry please kindly email to : lisa@prolabios.com
